14.7. Totais da NF-e ^[RTC]

Sumário

• 14.7.1. Total ICMS NT2023/001 ^[15-03-23]
• 14.7.2. Total ISSQN ^[19-01-14]
• 14.7.3. Total Tributos Retidos
• 14.7.4. Totais do IBS/CBS ^[RTC]
• 14.7.5. Totais da NF-e ^obsoleto

Funcionalidade para gerar o XML do Totais da NF-e

Assinatura

string totalRTC(string ICMSTot, string ISSQNTot, string retTrib, double vIS, string IBSCBSTot, double vNFTot)

Descrição:

Funcionalidade para gerar o XML do grupo de informações de Total da NF-e da versão 4.x

Importante

Atualização necessária para atender o novo leiaute da NF-e da NT 2025/002 - Reforma Tributária do Consumo

Vigência:

• ambiente de homologação: a partir de 01/07/2025
• ambiente de produção: a partir de 01/10/2025

Versão da DLL requerida:

• Requer atualização da DLL para versão 2Gv5.00 ou superior

Histórico de atualização:

• 2025-06-13 - versão 2Gv5.00

Parâmetros:

nome	tipo	tam.	obrig.	descrição
ICMSTot	string	-	sim	informar o XML do grupo ICMSTot
ISSQNTot	string	-	não	informar o XML do grupo ISSQNTot
retTrib	string	-	não	informar o XML do grupo retTrib
vIS	double	15,2	não	informar o Valor Total do IS (campo novo RTC)
IBSCBSTot	string	-	não	informar o XML do grupo IBSCBSTot (grupo novo RTC)
vNFTot	double	15,2	não	informar o Valor total da NF-e com IBS/CBS/IS (campo novo RTC)

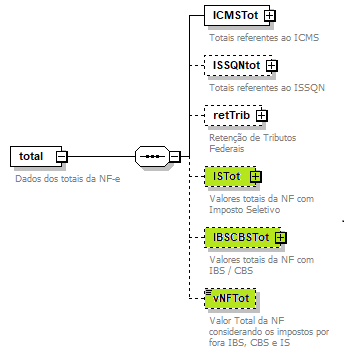

Diagrama:

Retorno:

Um string com o grupo XML Totais de Tributos

XML:

<total>
  <ICMSTot>
    <vBC>100.00</vBC>
    <vICMS>18.00</vICMS>
    <vICMSDeson>0.00</vICMSDeson>
    <vFCPUFDest>1.00</vFCPUFDest>
    <vICMSUFDest>2.40</vICMSUFDest>
    <vICMSUFRemet>3.60</vICMSUFRemet>
    <vFCP>0.00</vFCP>
    <vBCST>0.00</vBCST>
    <vST>0.00</vST>
    <vFCPST>0.00</vFCPST>
    <vFCPSTRet>0.00</vFCPSTRet>
    <vProd>100.00</vProd>
    <vFrete>0.00</vFrete>
    <vSeg>0.00</vSeg>
    <vDesc>0.00</vDesc>
    <vII>0.00</vII>
    <vIPI>0.00</vIPI>
    <vIPIDevol>0.00</vIPIDevol>
    <vPIS>0.00</vPIS>
    <vCOFINS>0.00</vCOFINS>
    <vOutro>0.00</vOutro>
    <vNF>100.00</vNF>
  </ICMSTot>
  <vISTot>
    <vIS>0.00</vIS>
  </vISTot>
  <IBSCBSTot>
    <vBIBSCBS>1234.56</vBIBSCBS>
    <gIBS>
      <gIBSUF>
        <vDif>100.00</vDif>
        <vDevTrib>10.00</vDevTrib>
        <vIBSUF>90.00</vIBSUF>
      </gIBSUF>
      <gIBSMun>
        <vDif>20.00</vDif>
        <vDevTrib>30.00</vDevTrib>
        <vIBSMun>40.00</vIBSMun>
      </gIBSMun>
      <vIBS>100.00</vIBS>
      <vCredPres>0.00</vCredPres>
      <vCredPresCondSus>0.00</vCredPresCondSus>
    </gIBS>
    <gCBS>
      <vDif>100.00</vDif>
      <vDevTrib>10.00</vDevTrib>
      <vCBS>90.00</vCBS>
      <vCredPres>0.00</vCredPres>
      <vCredPresCondSus>0.00</vCredPresCondSus>
    </gCBS>
    <gMono>
      <vIBSMono>1000.00</vIBSMono>
      <vCBSMono>2000.00</vCBSMono>
      <vIBSMonoReten>300.00</vIBSMonoReten>
      <vCBSMonoReten>400.00</vCBSMonoReten>
      <vIBSMonoRet>50.00</vIBSMonoRet>
      <vCBSMonoRet>60.00</vCBSMonoRet>
    </gMono>
  </IBSCBSTot>
  <vNFTot>123456.78</vNFTot>
</total>

Exemplos de uso:

Visual Basic 6.0


Private Sub Command21_Click()

' grupo totais da NF-e

' Declaração de variáveis

Dim totalRTC As String
Dim ICMSTot As String
Dim ISSQNTot As String
Dim retTrib As String
Dim vIS As Double
Dim IBSCBSTot As String
Dim vNFTot As Double

' instancia a DLL

Dim objNFeUtil As Object

Set objNFeUtil = CreateObject("NFe_Util_2G.Util")

' inicializar variáveis

totalRTC = ""

' informar o grupo total do ICMS

ICMSTot = "<ICMSTot><vBC>100.00</vBC><vICMS>18.00</vICMS><vICMSDeson>0.00</vICMSDeson><vFCPUFDest>1.00</vFCPUFDest><vICMSUFDest>2.40</vICMSUFDest><vICMSUFRemet>3.60</vICMSUFRemet><vFCP>0.00</vFCP><vBCST>0.00</vBCST><vST>0.00</vST><vFCPST>0.00</vFCPST><vFCPSTRet>0.00</vFCPSTRet><vProd>100.00</vProd><vFrete>0.00</vFrete><vSeg>0.00</vSeg><vDesc>0.00</vDesc><vII>0.00</vII><vIPI>0.00</vIPI><vIPIDevol>0.00</vIPIDevol><vPIS>0.00</vPIS><vCOFINS>0.00</vCOFINS><vOutro>0.00</vOutro><vNF>100.00</vNF></ICMSTot>"

' informar o grupo total do ISSQN

ISSQNTot = ""

' informar o grupo total do Tributos Retidos

retTrib = ""

' informar o valor do IS

vIS = 0

' informar o grupo total do IBS/CBS

IBSCBSTot = "<IBSCBSTot><vBIBSCBS>1234.56</vBIBSCBS><gIBS><gIBSUF><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vIBSUF>90.00</vIBSUF></gIBSUF><gIBSMun><vDif>20.00</vDif><vDevTrib>30.00</vDevTrib><vIBSMun>40.00</vIBSMun></gIBSMun><vIBS>100.00</vIBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gIBS><gCBS><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vCBS>90.00</vCBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gCBS><gMono><vIBSMono>1000.00</vIBSMono><vCBSMono>2000.00</vCBSMono><vIBSMonoReten>300.00</vIBSMonoReten><vCBSMonoReten>400.00</vCBSMonoReten><vIBSMonoRet>50.00</vIBSMonoRet><vCBSMonoRet>60.00</vCBSMonoRet></gMono></IBSCBSTot>"

' informar o valor total da NF-e

vNFTot = 123456.78

' gera XML de totais da NF-e

totalRTC = objNFeUtil.totalRTC(ICMSTot, _
                               ISSQNTot, _
                               retTrib, _
                               vIS, _
                               IBSCBSTot, _
                               vNFTot)

MsgBox totalRTC, vbInformation, "Informação"

End Sub

Delphi

procedure TForm1.Button10Click(Sender: TObject);
var
//  grupo totais da NF-e

// declarar a interface da DLL

objNFeUtil: OleVariant;

// Declaração de variáveis

totalRTC : widestring;
ICMSTot : widestring;
ISSQNTot : widestring;
retTrib  : widestring;
vIS  : double;
IBSCBSTot : widestring;
vNFTot  : double;

begin

// inicializar variáveis

totalRTC := '';

// informar o grupo total do ICMS

ICMSTot := '<ICMSTot><vBC>100.00</vBC><vICMS>18.00</vICMS><vICMSDeson>0.00</vICMSDeson><vFCPUFDest>1.00</vFCPUFDest><vICMSUFDest>2.40</vICMSUFDest><vICMSUFRemet>3.60</vICMSUFRemet><vFCP>0.00</vFCP>' + '<vBCST>0.00</vBCST><vST>0.00</vST><vFCPST>0.00</vFCPST><vFCPSTRet>0.00</vFCPSTRet><vProd>100.00</vProd><vFrete>0.00</vFrete><vSeg>0.00</vSeg><vDesc>0.00</vDesc><vII>0.00</vII><vIPI>0.00</vIPI>'+'<vIPIDevol>0.00</vIPIDevol><vPIS>0.00</vPIS><vCOFINS>0.00</vCOFINS><vOutro>0.00</vOutro><vNF>100.00</vNF></ICMSTot>';

// informar o grupo total do ISSQN

ISSQNTot := '';

// informar o grupo total do Tributos Retidos

retTrib := '';

// informar o valor do IS

vIS := 0;

// informar o grupo total do IBS/CBS

IBSCBSTot := '<IBSCBSTot><vBIBSCBS>1234.56</vBIBSCBS><gIBS><gIBSUF><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vIBSUF>90.00</vIBSUF></gIBSUF>'+'<gIBSMun><vDif>20.00</vDif><vDevTrib>30.00</vDevTrib><vIBSMun>40.00</vIBSMun></gIBSMun><vIBS>100.00</vIBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gIBS>'+'<gCBS><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vCBS>90.00</vCBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gCBS><gMono><vIBSMono>1000.00</vIBSMono><vCBSMono>2000.00</vCBSMono>'+'<vIBSMonoReten>300.00</vIBSMonoReten><vCBSMonoReten>400.00</vCBSMonoReten><vIBSMonoRet>50.00</vIBSMonoRet><vCBSMonoRet>60.00</vCBSMonoRet></gMono></IBSCBSTot>';

// informar o valor total da NF-e

vNFTot := 123456.78;

//   instancia DLL - late binding

objNFeUtil := CreateOleObject('NFe_Util_2G.util');

// gera XML de totais da NF-e

totalRTC := objNFeUtil.totalRTC(ICMSTot,
                               ISSQNTot,
                               retTrib,
                               vIS,
                               IBSCBSTot,
                               vNFTot);

MessageDlg( 'XML resultante: '+totalRTC, mtInformation, [mbOk], 0);

end;

c#


// grupo totais da NF-e

// instancia a DLL

NFe_Util_2G.Util util = new NFe_Util_2G.Util();

// inicializar variáveis

string totalRTC = "";

// informar o grupo total do ICMS

string ICMSTot = "<ICMSTot><vBC>100.00</vBC><vICMS>18.00</vICMS><vICMSDeson>0.00</vICMSDeson><vFCPUFDest>1.00</vFCPUFDest><vICMSUFDest>2.40</vICMSUFDest><vICMSUFRemet>3.60</vICMSUFRemet><vFCP>0.00</vFCP><vBCST>0.00</vBCST><vST>0.00</vST><vFCPST>0.00</vFCPST><vFCPSTRet>0.00</vFCPSTRet><vProd>100.00</vProd><vFrete>0.00</vFrete><vSeg>0.00</vSeg><vDesc>0.00</vDesc><vII>0.00</vII><vIPI>0.00</vIPI><vIPIDevol>0.00</vIPIDevol><vPIS>0.00</vPIS><vCOFINS>0.00</vCOFINS><vOutro>0.00</vOutro><vNF>100.00</vNF></ICMSTot>";

// informar o grupo total do ISSQN

string ISSQNtot = "";

// informar o grupo total do Tributos Retidos

string retTrib = "";

// informar o valor do IS

double vIS = 0;

// informar o grupo total do IBS/CBS

string IBSCBSTot = "<IBSCBSTot><vBIBSCBS>1234.56</vBIBSCBS><gIBS><gIBSUF><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vIBSUF>90.00</vIBSUF></gIBSUF><gIBSMun><vDif>20.00</vDif><vDevTrib>30.00</vDevTrib><vIBSMun>40.00</vIBSMun></gIBSMun><vIBS>100.00</vIBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gIBS><gCBS><vDif>100.00</vDif><vDevTrib>10.00</vDevTrib><vCBS>90.00</vCBS><vCredPres>0.00</vCredPres><vCredPresCondSus>0.00</vCredPresCondSus></gCBS><gMono><vIBSMono>1000.00</vIBSMono><vCBSMono>2000.00</vCBSMono><vIBSMonoReten>300.00</vIBSMonoReten><vCBSMonoReten>400.00</vCBSMonoReten><vIBSMonoRet>50.00</vIBSMonoRet><vCBSMonoRet>60.00</vCBSMonoRet></gMono></IBSCBSTot>";

// informar o valor total da NF-e

double vNFTot = 123456.78;

// gera XML de totais da NF-e

totalRTC = util.totalRTC(ICMSTot, ISSQNtot, retTrib, vIS, IBSCBSTot, vNFTot);
